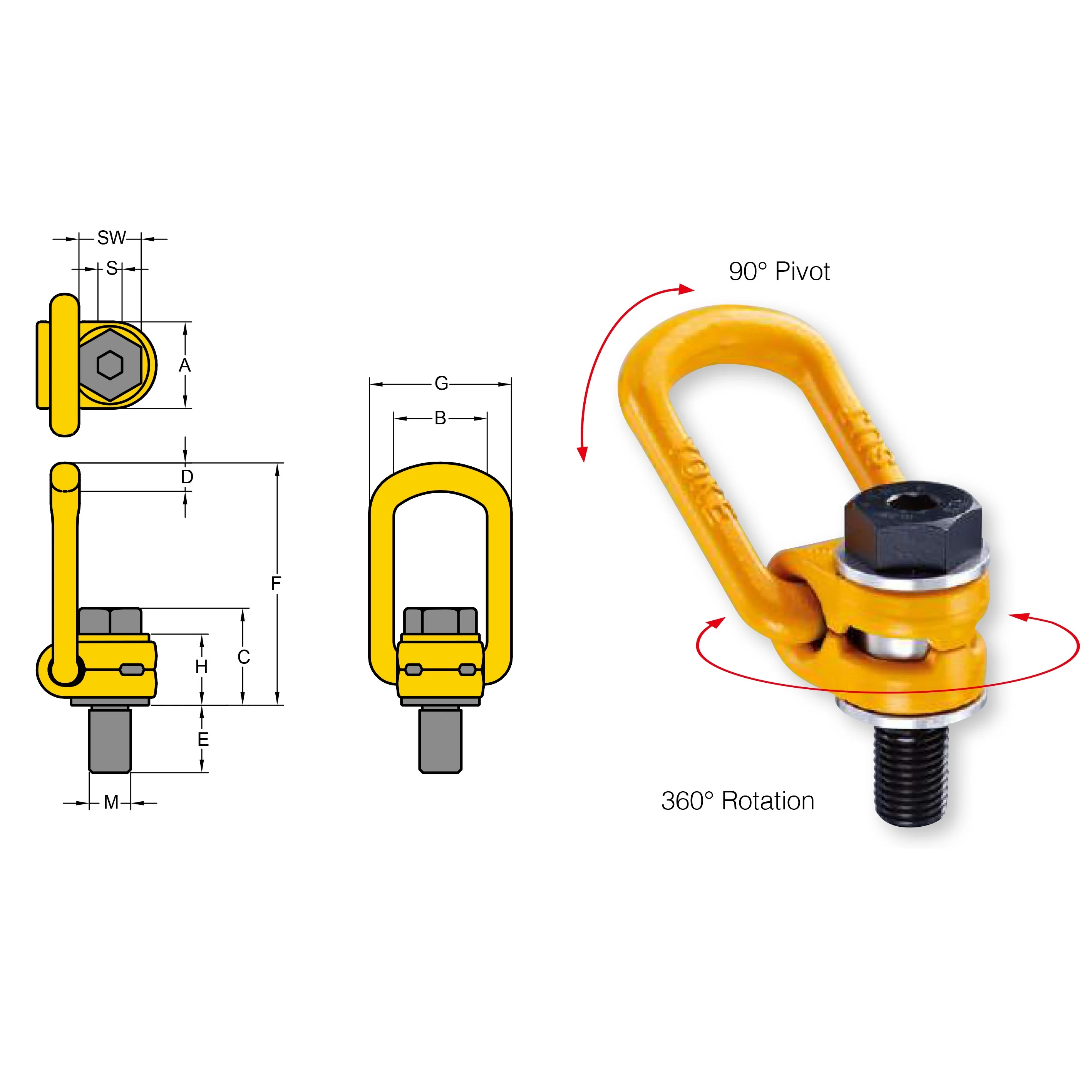

YOKE Type 212 UNC Lifting Point

YOKE Type 212 UNC Lifting Point

Model: 8-212

  • Rotates through 360° and pivot 90°.
  • Manufactured from alloy steel, quenched and tempered.
  • Manufactured and tested in accordance with EN 1677-1.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Bolts are Metric thread (ASME / ANSI B18.3.1M).
  • Proof tested to 2.5 times the WLL.
  • Fatigue rated to 1.5 times the WLL.
  • Design Factor 4 : 1.
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
  • Quick and simple assembly, just a tapped hole is required.



Select Thread Size
From $26.32

Original: $75.20

-65%
YOKE Type 212 UNC Lifting Point—

$75.20

$26.32

Product Information

Shipping & Returns

Description

Model: 8-212

  • Rotates through 360° and pivot 90°.
  • Manufactured from alloy steel, quenched and tempered.
  • Manufactured and tested in accordance with EN 1677-1.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Bolts are Metric thread (ASME / ANSI B18.3.1M).
  • Proof tested to 2.5 times the WLL.
  • Fatigue rated to 1.5 times the WLL.
  • Design Factor 4 : 1.
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
  • Quick and simple assembly, just a tapped hole is required.
