Circular Muck Skip

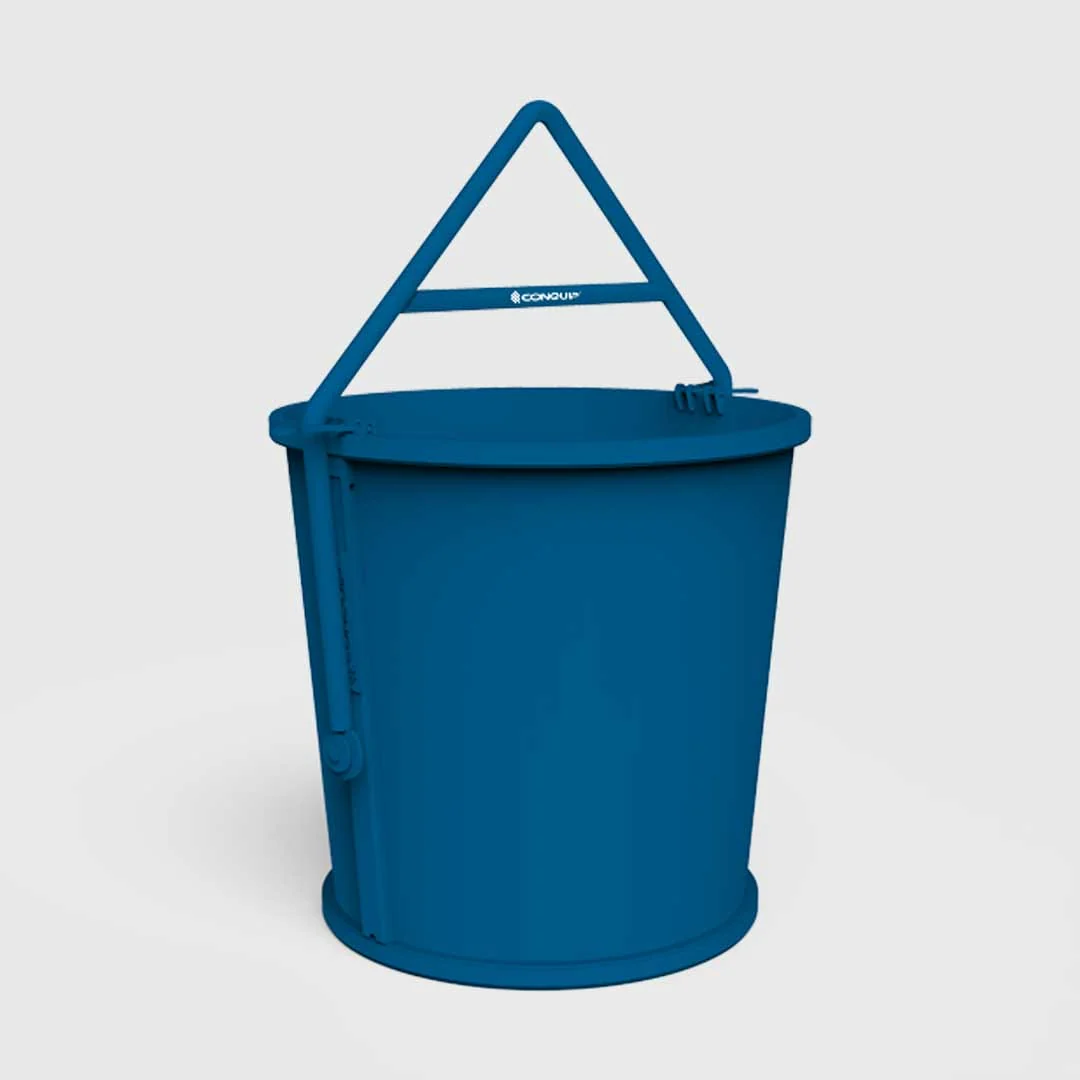

The Conquip Circular Muck Skip is a traditional skip for muck and waste removal using a crane.

The skip is fitted with two safety catches which are disengaged by hand, allowing the skip to self tip and empty automatically when lifted.

Features:
> Safety catches prevent accidental tipping
> Robust design

Benefits:
> Skip empties automatically when lifted in response to the centre of gravity of the Bale Arm, removing the need for an operator to be in the dangerous discharge zone
> Easy method for transporting muck and waste across site
>Available in a range of sizes from 100 to 1000 litres

PRODUCT CODE	WIDTH	HEIGHT	HEIGHT (with Bale Arm)	WEIGHT	WLL*	CAPACITY
CA109-00100	600mm	580mm	920mm	34kg	200kg	100 litres
CA109-00250	790mm	760mm	1230mm	70kg	500kg	250 litres
CA109-00500	1020mm	970mm	1620mm	105kg	1000kg	500 litres
CA109-00750	1130mm	1080mm	1810mm	150kg	1500kg	750 litres
CA109-01000	1350mm	1170mm	1940mm	200kg	2000kg	1000 litres

* Working Load Limit
