8 x 19 (S) IWRC Construction COMPACTED Wire Rope
Model: CWR819
Our wire ropes are sold per metre. Add your required meterage into the quantity box.

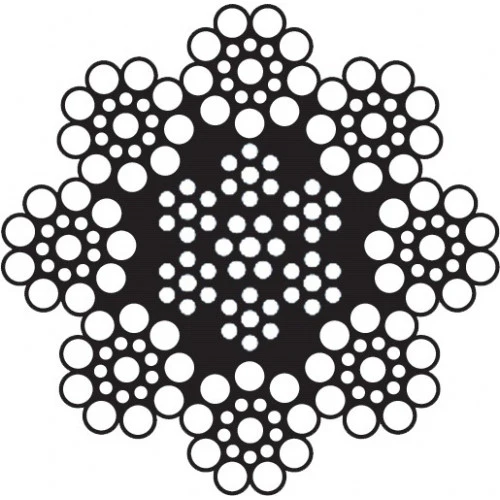

The 8 x 19 (S) IWRC Construction COMPACTED Wire Rope boasts a sophisticated design comprising eight strands, each featuring 19 individual wires. What sets this wire rope apart is its compacted construction, which involves a specialised process that reduces the gaps between individual wires. This compacting process enhances the rope's strength, durability, and resistance to abrasion, making it an ideal choice for demanding applications that require both flexibility and robustness.
Compacted wire rope giving a higher breaking strain than standard wire ropes, ideal for cranes, main hoist ropes and offshore cranes.
| Dia of Rope | Breaking Strain (Kgs) | Grade of Rope |
| 6.4mm | 4194 | 2160/2360 |
| 7.2mm | 5350 | 2160/2360 |
| 8mm | 6692 | 2160/2360 |
| 9mm | 7833 | 2160/2360 |
| 10mm | 10'044 | 2160/2360 |
| 11mm | 12'894 | 2160/2360 |
| 13mm | 17'539 | 2160/2360 |
Supplied with an E.C Declaration of Conformity.
